MACHINING FACILITY

FACILITIES

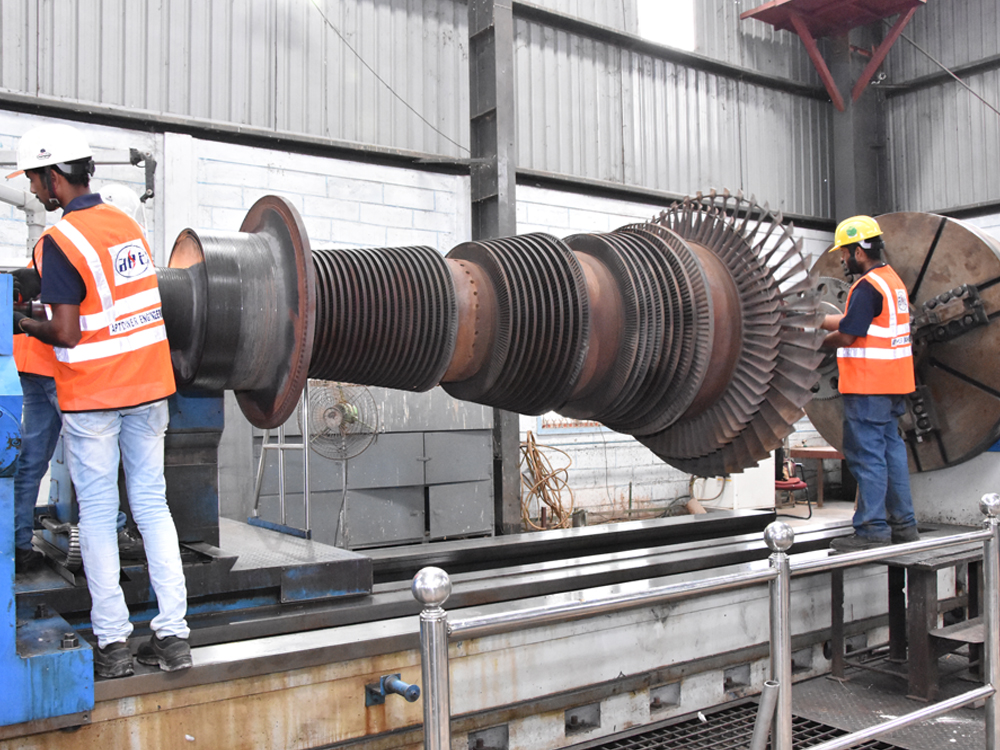

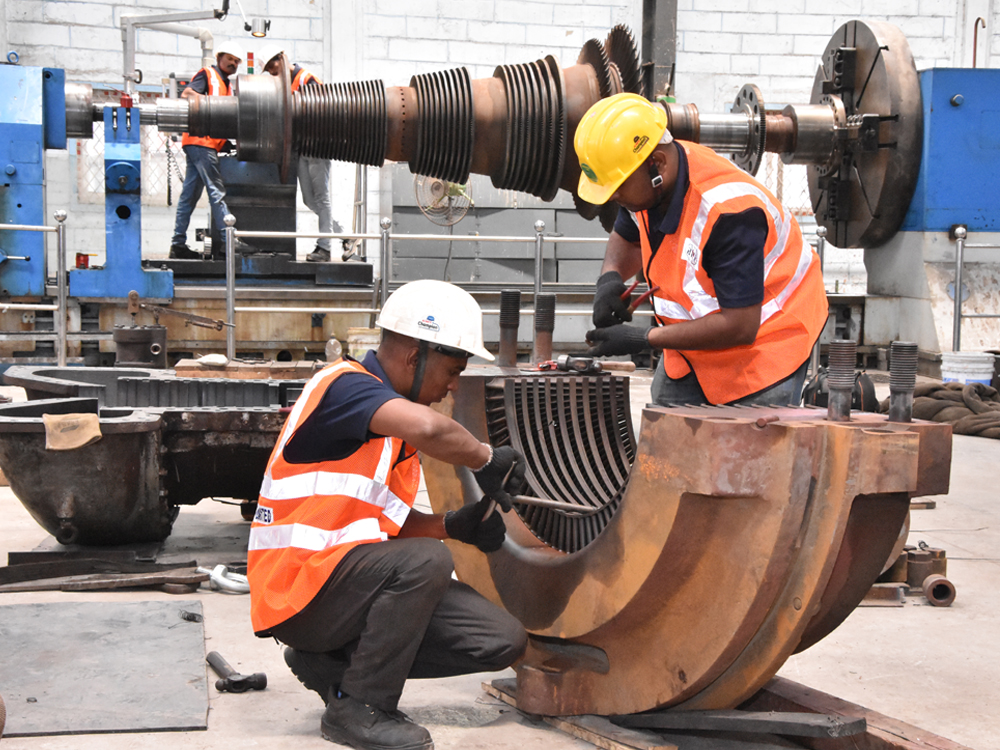

APT works division is facilitated with fully established workshops (2 units) to take care of major Repair/Re-work/Services and supply of Spares for TG set and its auxiliaries. The APT workshop facility is sophisticated to undertake repair and rework of higher capacity TG sets of up to 250 MW.

APT can meet any spare parts supply needs through the inhouse facilities and reverse engineering or through our network. If necessitated, repairs can be carried out in the field to the extent possible and if the repairs require additional machining, it can be completed at our facility. Our workshop is also approved by IBR authorities for the manufacturing of equipments with IBR stamping.

  •   Unit 1 having a working area of 1000 Sq. Yards.
  •   Unit 2 having a working area of 8000 Sq. Yards.

Machining Facility

We have well equipped machining facility at our workshop

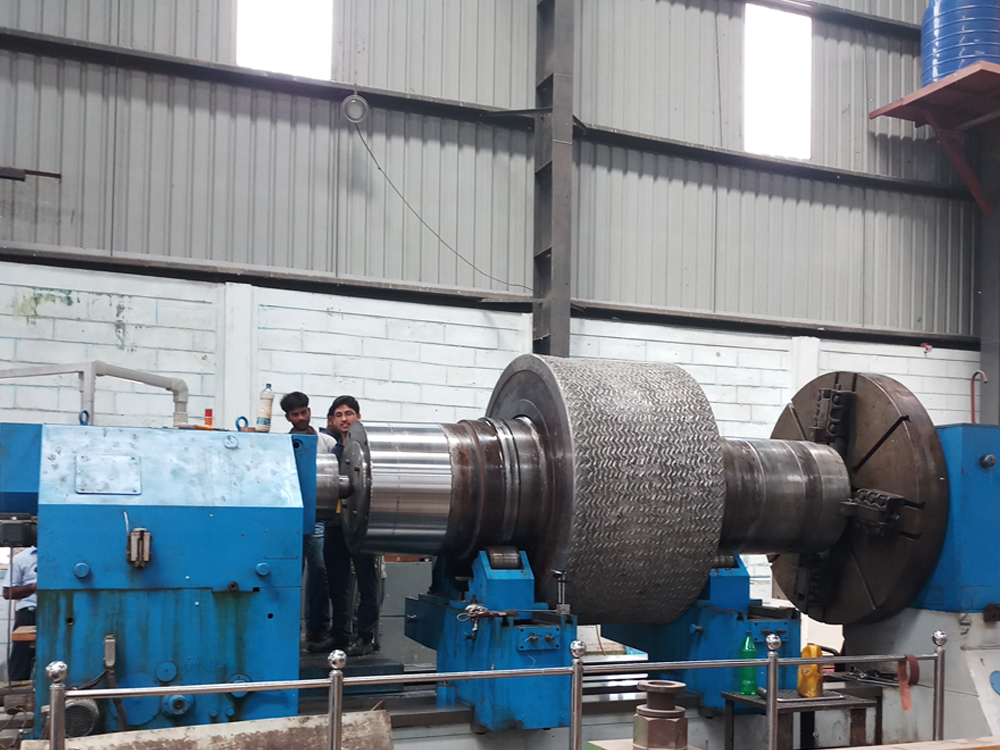

  • CNC Heavy Duty Horizontal Lathes – we can accommodate jobs up to Max Día -2400mm, Maximum job length b/w centers- 9000mm
  • CNC Heavy Duty Horizontal Lathe: we can accommodate jobs up to -Max Dia -2000mm, Maximum job length b/w centers- 4500mm
  • CNC Horizontal Lathe: we can accommodate jobs up to Max Día-600mm, Maximum job length b/w centers- 2000mm

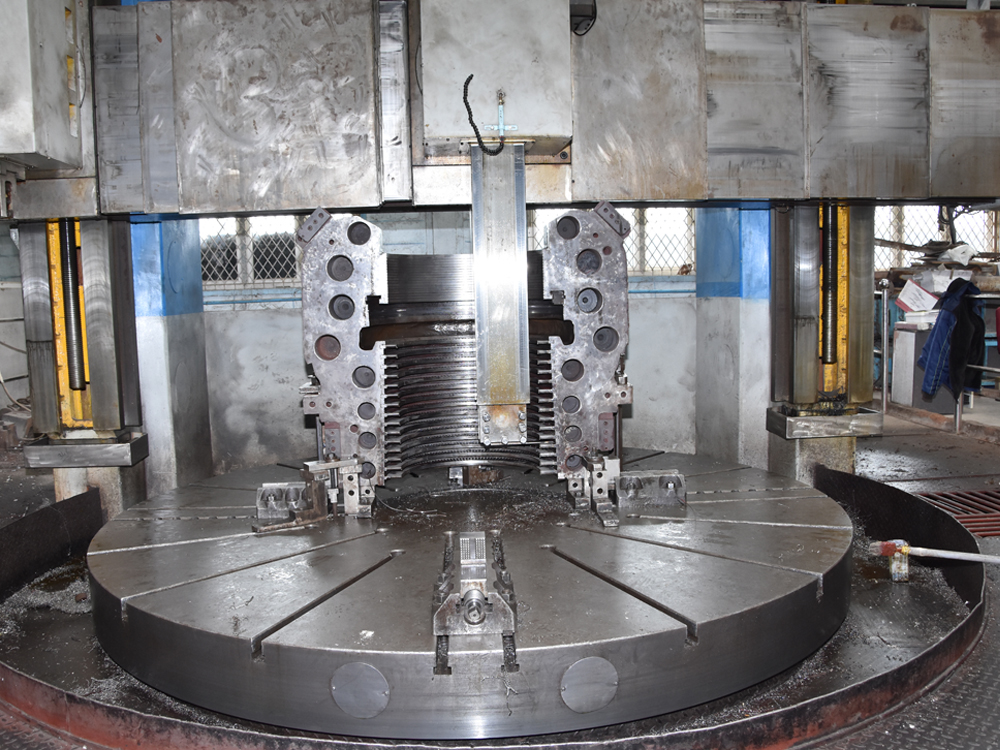

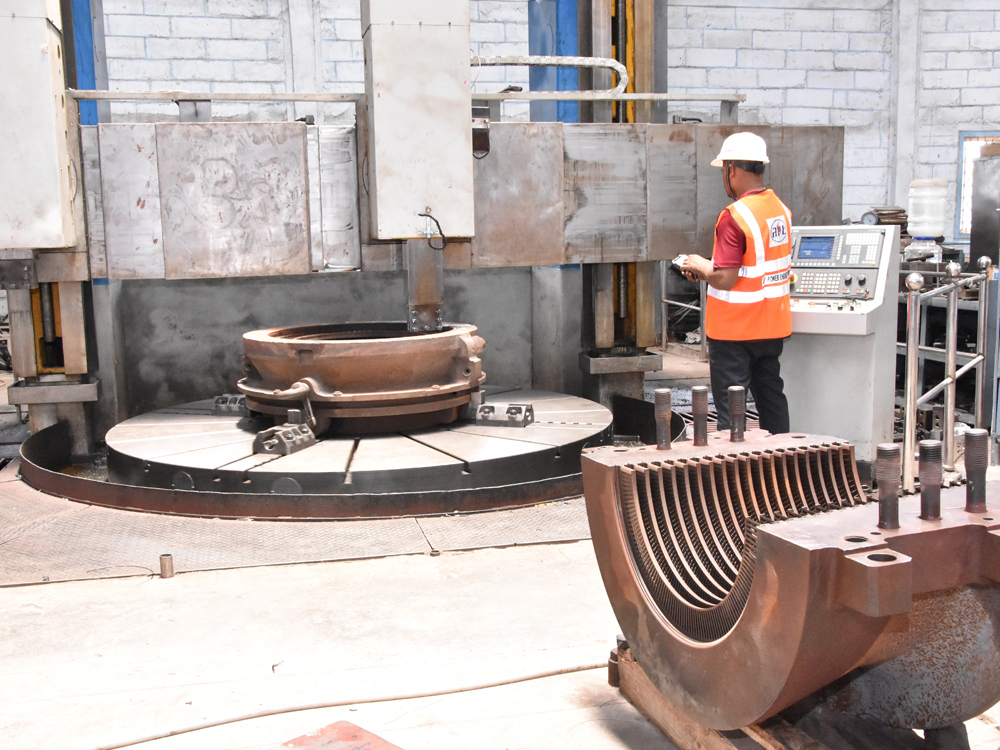

  • CNC Heavy Duty Double Column: we can accommodate jobs up to - swing over bed-3500mm; maximum height of the Jon 2.5 mts

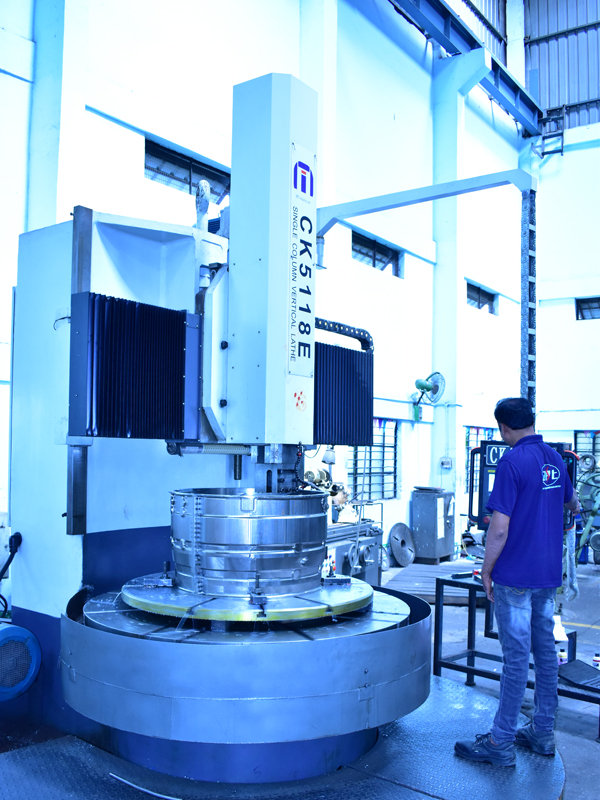

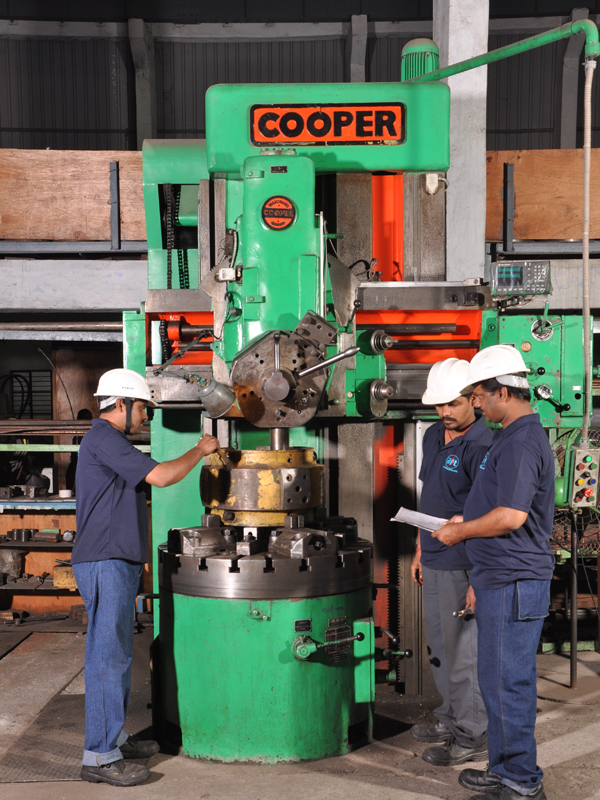

  • CNC Single Column Vertical Lathe- we can accommodate jobs up to - swing over bed-1800mm; maximum height of the Jon 1200mm
  • Cylindrical Grinding– length – 1 mtr, Max Dia – 100mm, both Internal and External grinding

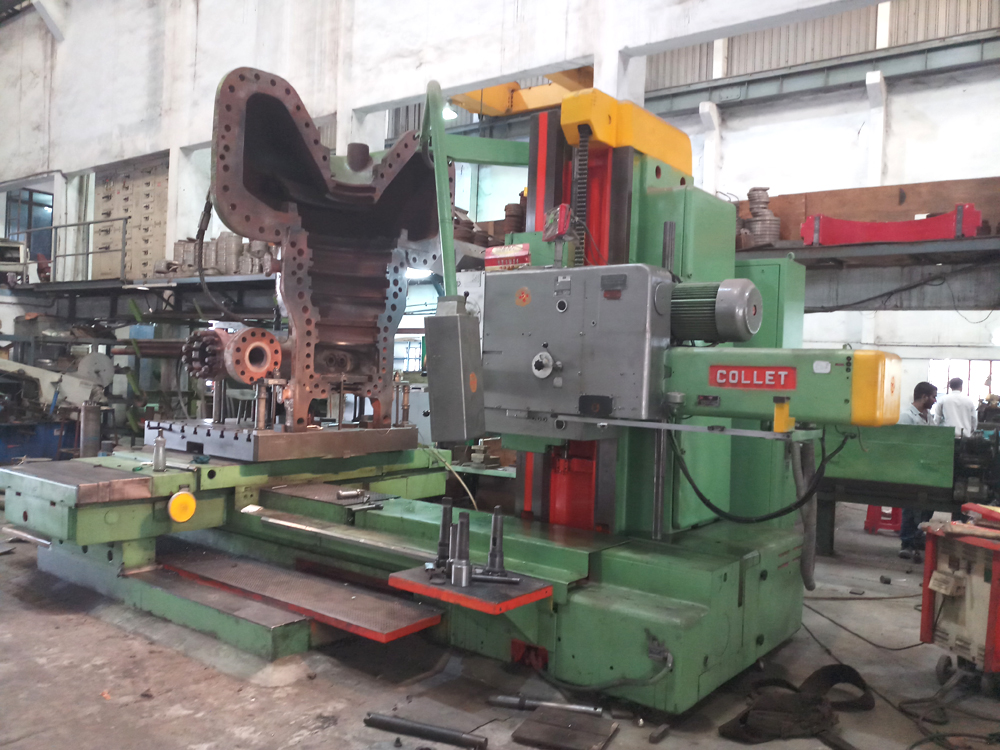

  • Various sizes and capacities of conventional Lathe, Milling, Drilling and Cutting machines
  • Centrifugal Babbiting Machines

We have well equipped machining facility at our workshop

  • Induction Heating Equipment
  • Generator Rotor and Stator electrical testing equipment – RSO testing kit; TAN delta kit, Megar – 5KV, Micro OHM meter
  • Bolt heating Equipment
  • Cryogenic - dry ice /co2 blast cleaning
  • High Pressure water jet machine
  • Grit Blasting equipment
